Screw dia 140 LD MD 07 double motor mould head filter area 250*250mm
Production descriptions:
1)Screen changer can not only filter the impurities, but also can significantly improve the plasticizing and homogenization effect of the raw material. In this way, it can make the product structure more homogeneous and product surface more smooth, thus improve the quality of extruded products. In a word,screen changer can reduce the unit cost and increase hourly output.
Nearly all the polymers are fit for screen changer, such as PC, PMMA, PET, PVC, PS, PU, PP, PE, EVA, ABS, etc.

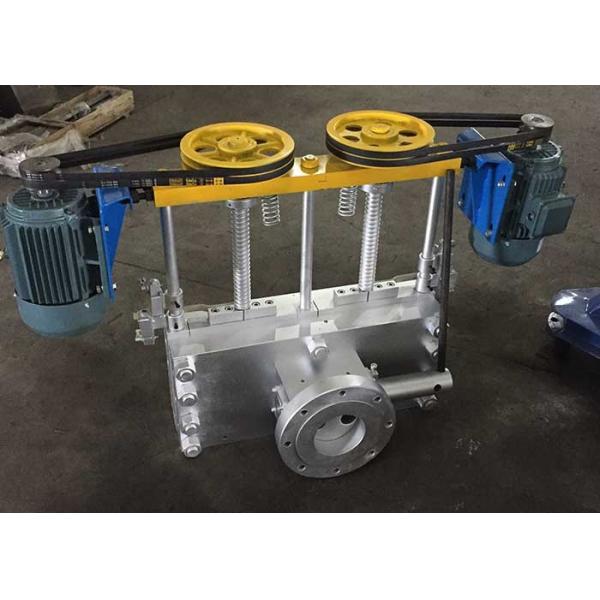

2)The electrical screen changer is driven by two motor,to move the screen packs in and out of the melt flow,These kinds of units can be defined as semi-continuous because they allow screen changing without stopping the line.
3)The advantages to this type of unit are relatively low cost, straight-through, low-pressure-loss design, and screen changing without stopping the line.
Features:
1.We design and manufacture production of various sizes according to the customers' requirement.
2.It is of high productive efficiency; Little noise, smooth running; secure and reliable operation, long service life.
3.It is suitable for filtering the impurity in the material ,double screen changer design ,realizing non-stop,easy to operate.
4.Equipped with air venting system.
5.automatic deslagging,high efficiency.
Specifications:
| Model | Filter area | Screw dia | Die cube |
| LD-MD-01 | 140×140 | 65 | 0.3 |
| LD-MD-02 | 160×160 | 80 | 0.35 |
| LD-MD-03 | 180×180 | 90 | 0.4 |
| LD-MD-04 | 200×200 | 100 | 0,45 |
| LD-MD-05 | 220×220 | 120 | 0.5 |
| LD-MD-06 | 240×240 | 130 | 0.55 |
| LD-MD-07 | 250×250 | 140 | 0.6 |
| LD-MD-08 | 300×300 | 150 | 0.65 |
| LD-MD-09 | 330×330 | 160 | 0.7 |
| LD-MD-10 | 350×350 | 180 | 0.75 |
Detail images:
Packaging & Delivery:
1. We can provide custom-made packaging.
2.Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
5. Sophisticated and professional logistic agent..
Competitive advantages:
1.Since 1992, professional manufacturer of plastic recycling machinie and pelletizing machine ;
2.The biggest manufacturer of plastic pelletizing machine in zhejiang province .
3.3000 pcs quatity of pelletizer in one year .300 pcs quantity of recycling machine in one year.
4.Promise:We will provide technical support for all lifetime with over 20 years experiences.
